Secure scaffolding, hoarding, staging and temporary installations with Blok Logic’s BL500 & BL1000 — purpose-built Kentledge blocks for rapid, reliable deployment. Custom-made with pre-set M20 stainless steel fixing points, each unit delivers fast, secure on-site attachment. Available in 500kg and 1,000kg capacities for events and temporary works at any scale.

Sizes Available

	BL200	BL500	BL1000	BL2500	BL5000
Weight	200KG	500KG	1,000KG	2,500KG	5,000KG
Marquee Ballast
Site Security
Linkable
HIghways Rated (TVCB)
Kentledge (Scaff Ready)
Forklift Friendly					*
M20 Eye Bolt (Fixed)
PVC Covers Upon Request
Bespoke Design
C60 Mix (Premium)
Dimensions WxHxL *mm	350x350x800	440x650x800	500x750x1170	450x800x3150	800x800x3200

*Custom forks required

BL200

Weight	200KG
Marquee Ballast
Site Security
Linkable
Highways Rated (TVCB)
Kentledge (Scaff Ready)
Forklift Friendly
M20 Eye Bolt (Fixed)
PVC Covers Upon Request
Bespoke Design
C60 Mix (Premium)
Dimensions WxHxL *mm	350x350x800

BL500

Weight	500KG
Marquee Ballast
Site Security
Linkable
Highways Rated (TVCB)
Kentledge (Scaff Ready)
Forklift Friendly
M20 Eye Bolt (Fixed)
PVC Covers Upon Request
Bespoke Design
C60 Mix (Premium)
Dimensions WxHxL *mm	440x650x800

BL1000

Weight	1,000KG
Marquee Ballast
Site Security
Linkable
Highways Rated (TVCB)
Kentledge (Scaff Ready)
Forklift Friendly
M20 Eye Bolt (Fixed)
PVC Covers Upon Request
Bespoke Design
C60 Mix (Premium)
Dimensions WxHxL *mm	500x750x1170

BL2500

Weight	2,500KG
Marquee Ballast
Site Security
Linkable
Highways Rated (TVCB)
Kentledge (Scaff Ready)
Forklift Friendly
M20 Eye Bolt (Fixed)
PVC Covers Upon Request
Bespoke Design
C60 Mix (Premium)
Dimensions WxHxL *mm	450x800x3150

BL5000

Weight	5,000KG
Marquee Ballast
Site Security
Linkable
Highways Rated (TVCB)
Kentledge (Scaff Ready)
Forklift Friendly	*
M20 Eye Bolt (Fixed)
PVC Covers Upon Request
Bespoke Design
C60 Mix (Premium)
Dimensions WxHxL *mm	800x800x3200

*Custom forks required

Specification

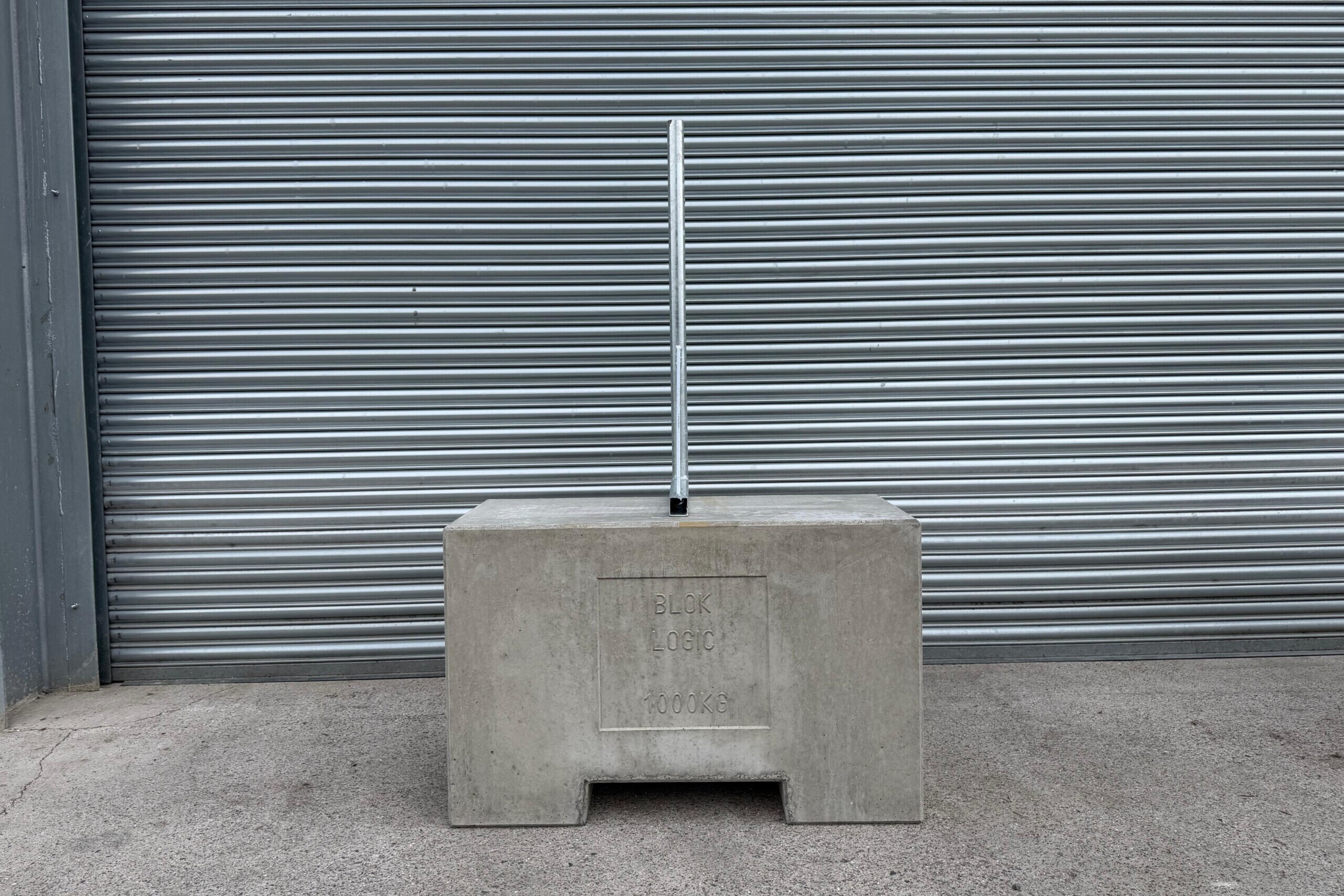

Blok Logic Kentledge Blocks are available in 500kg and 1,000kg sizes, each cast using high-strength C60-grade concrete. This premium mix—widely used in structural and commercial applications—delivers exceptional durability, outstanding load-bearing performance and long-term reliability in even the most demanding environments.

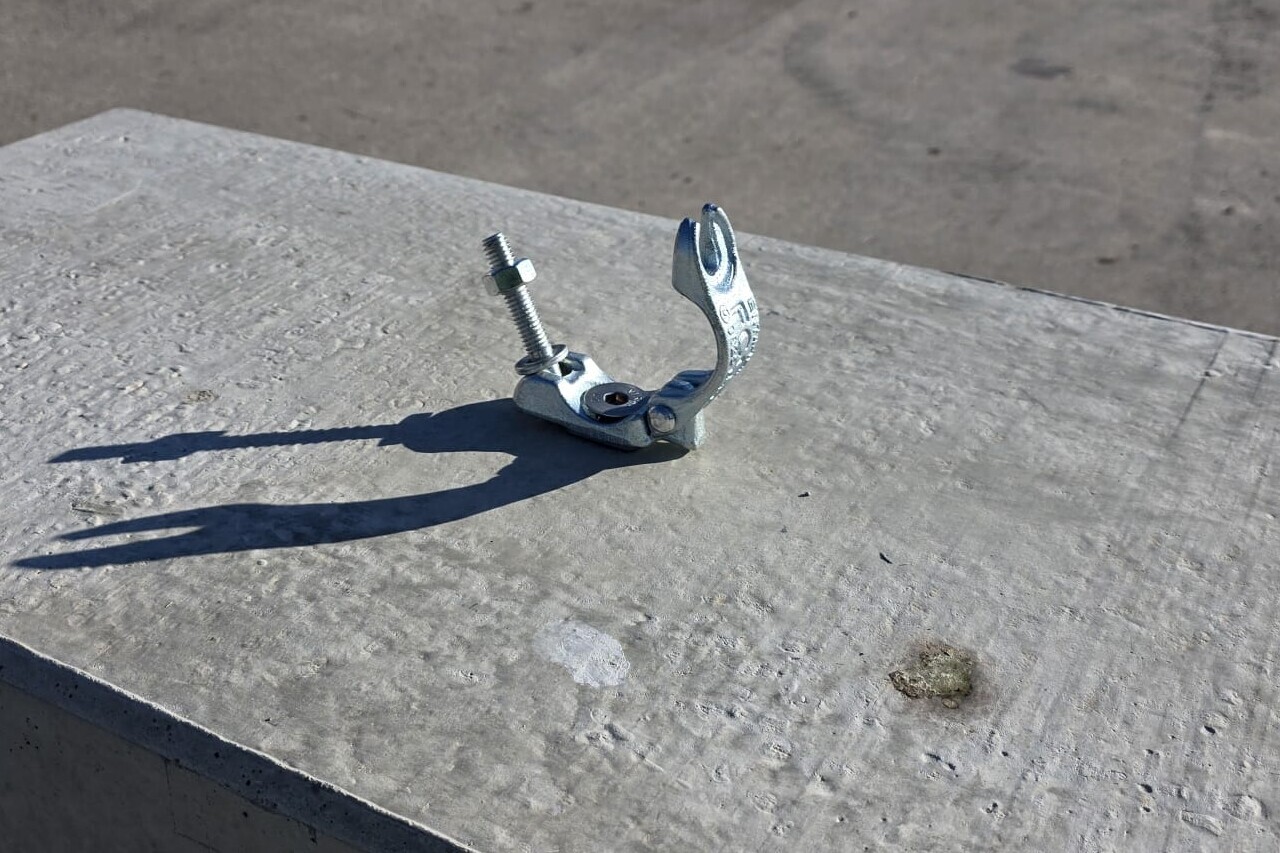

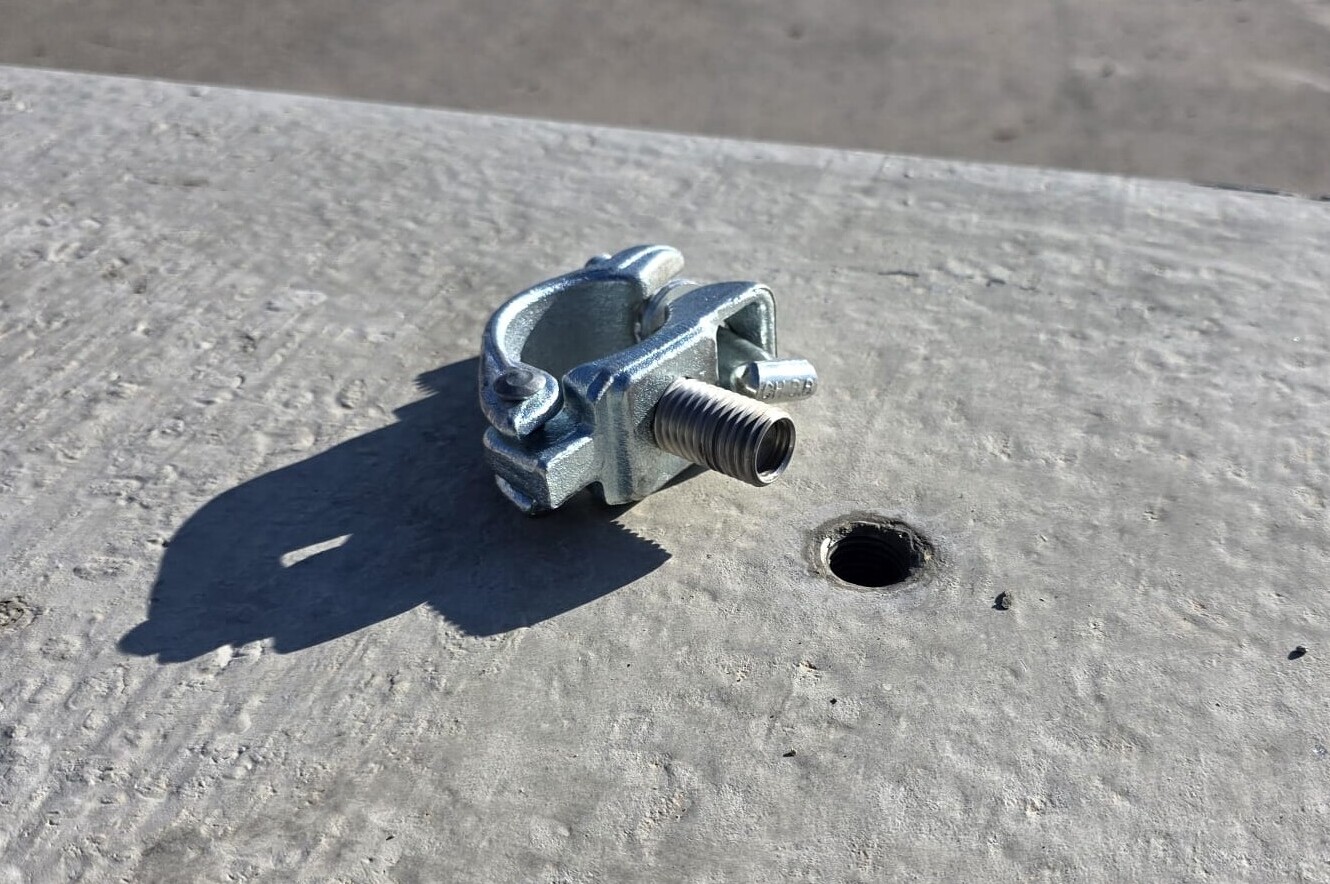

Both the 500kg and 1,000kg blocks feature an M20 fixing point on the top and side. When paired with either a standard scaffolding coupler or one of our specialist scaff uprights, they become the preferred choice for fast, secure and straightforward hoarding installation.

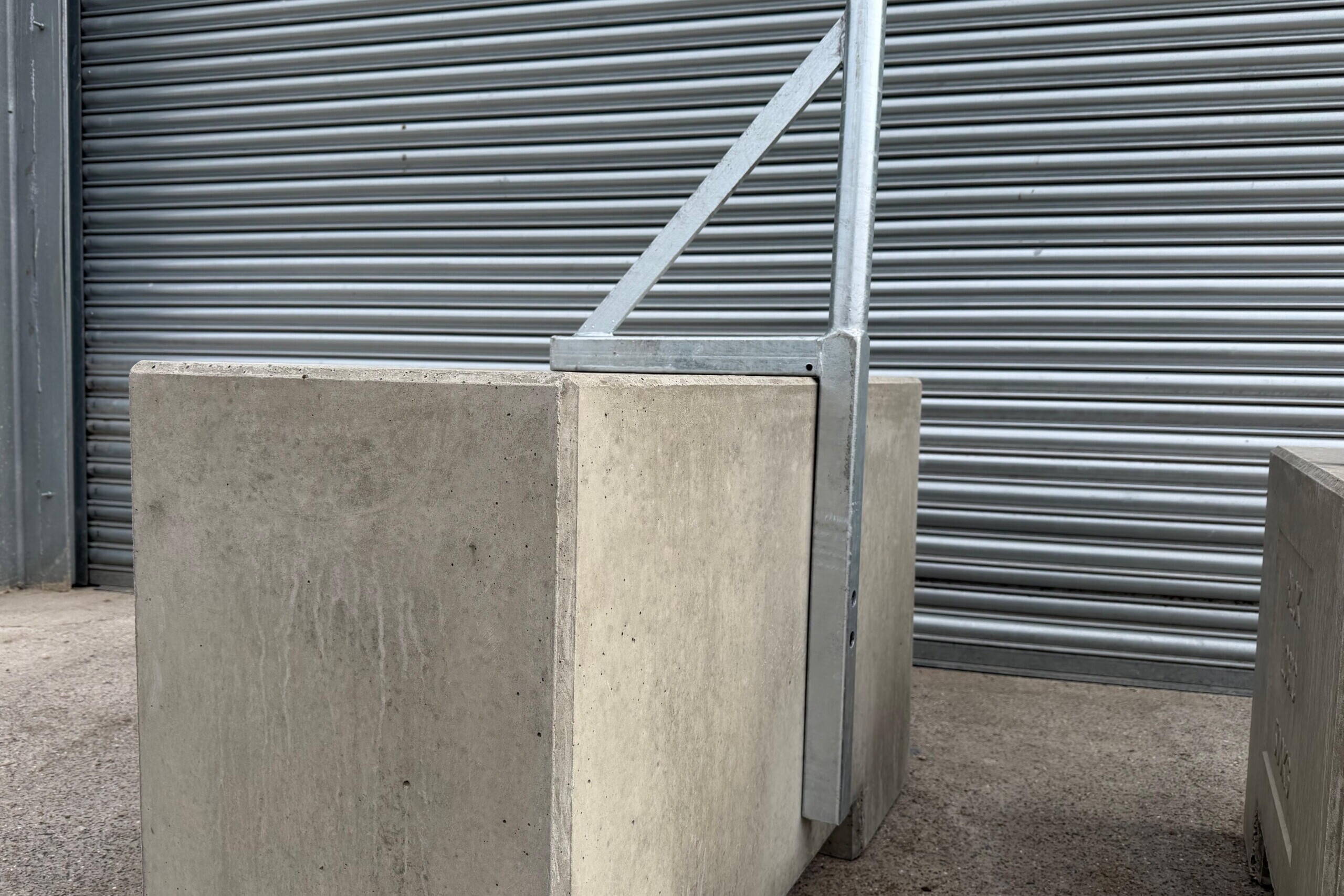

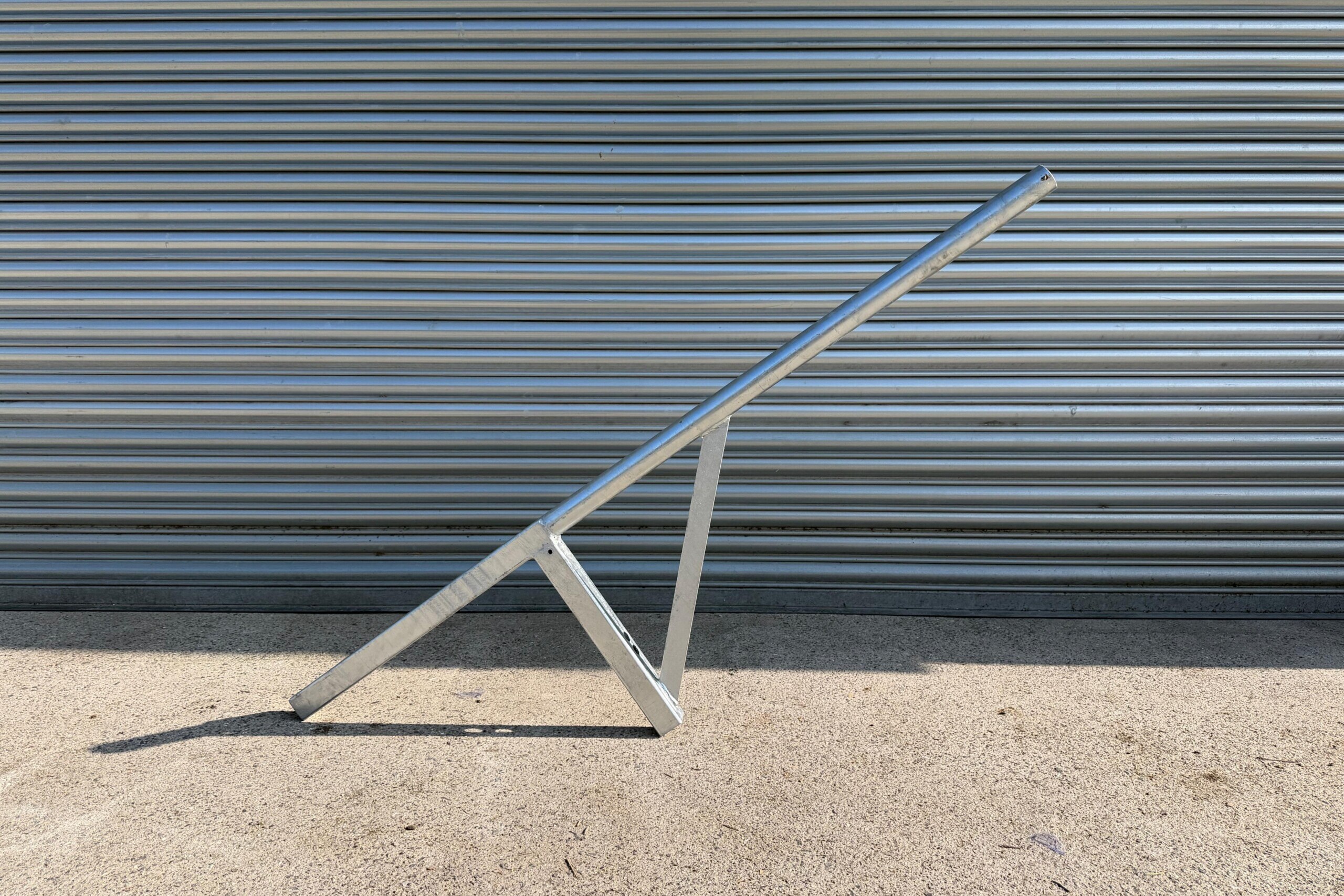

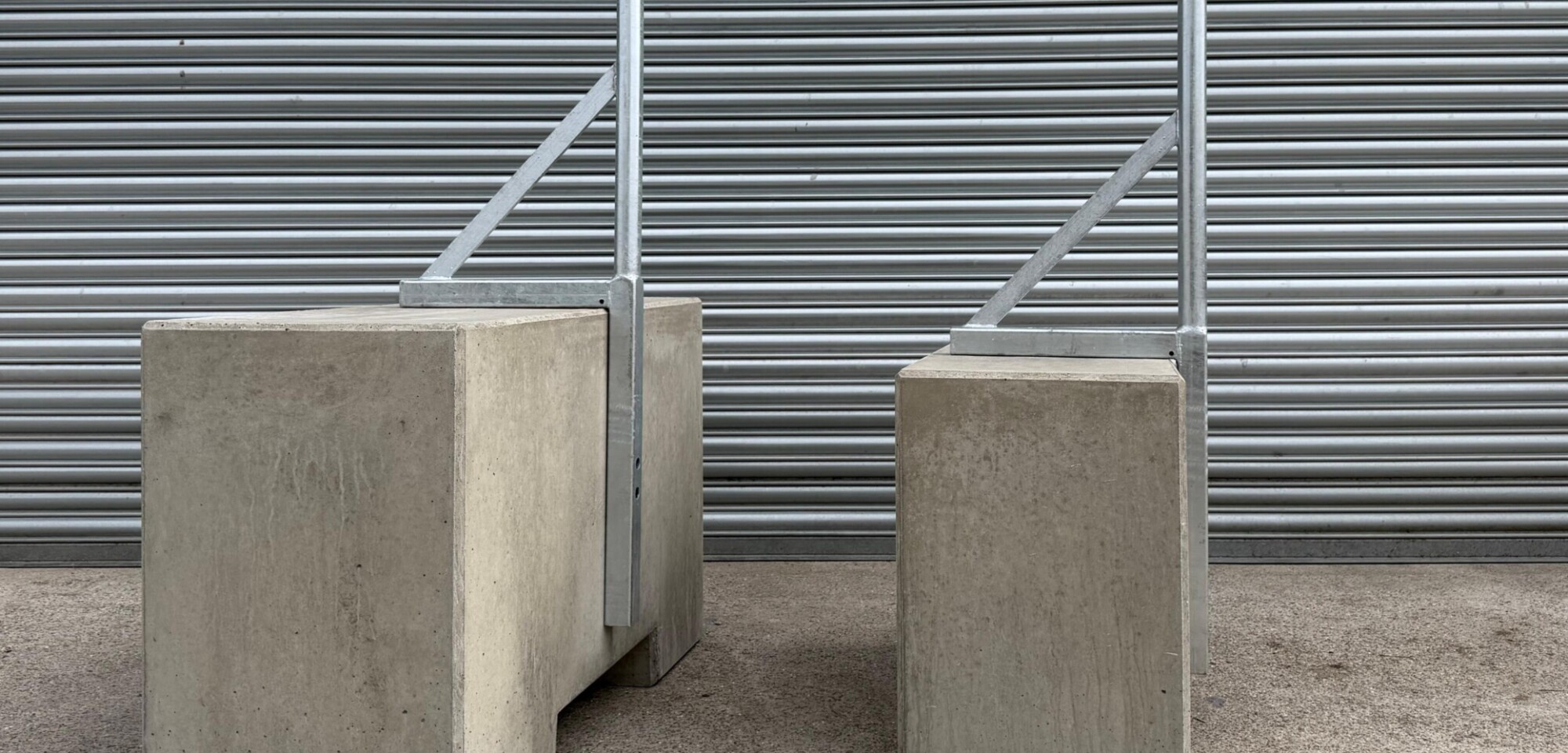

Blok Logic Kentledge Brace Bars

Our custom-made, galvanised kentledge brace bars are designed to aid rapid installations across all hoarding, lighting and kentledge situations.

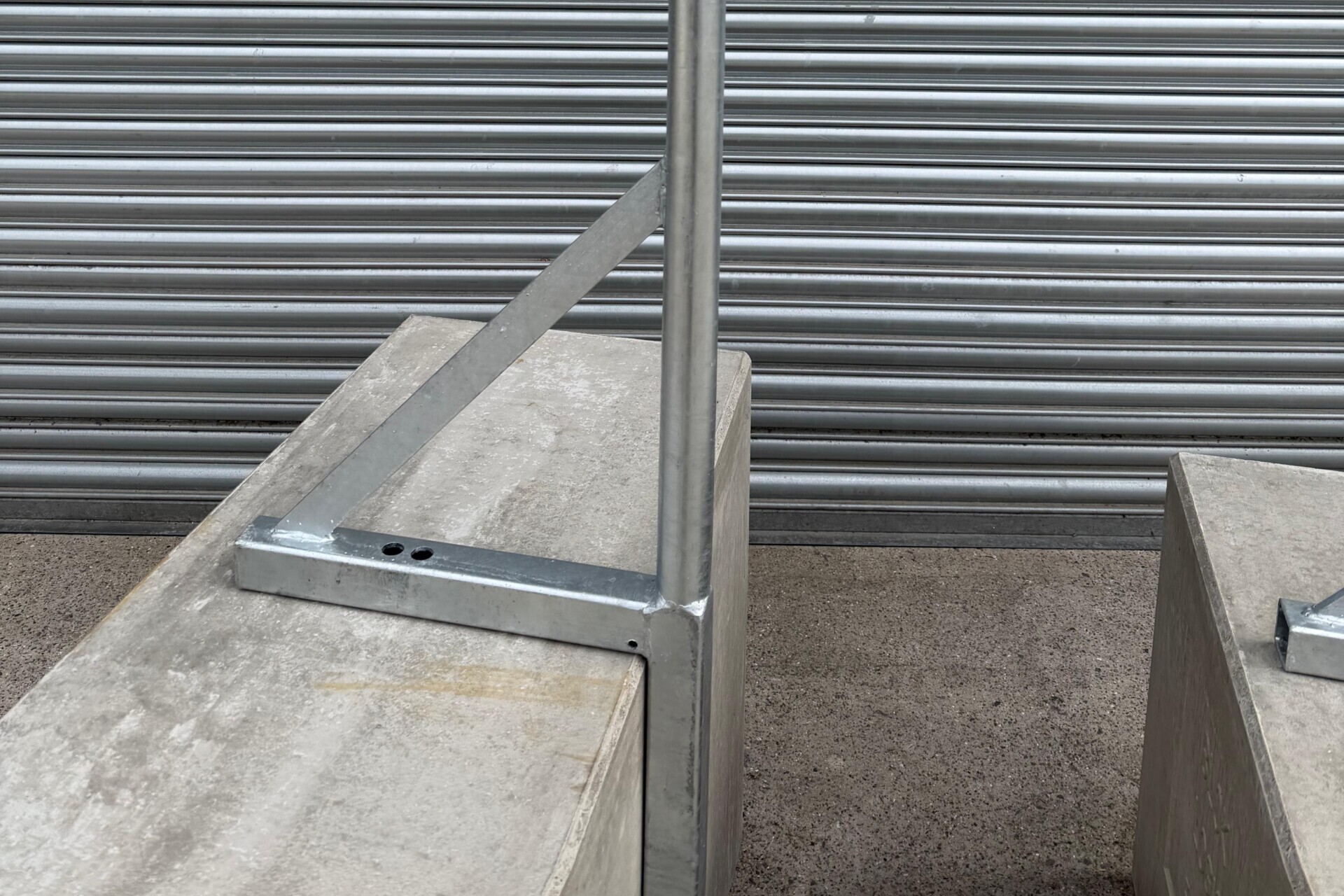

Each bar secures to both the BL500 and BL1000 via two ultra-secure M20 stainless steel threads, which are integral to the blocks themselves. Once fixed, standard scaffolding fixtures and fittings can be used to build your configurations with confidence, knowing they are fully integrated with the underlying ballast weight.

Brace bars and stainless steel M20 bolts are supplied separately. Please ensure you request these when speaking with our hire managers.
